There I was, standing on top of my wobbly dining chair at midnight, holding a twenty-pound projector over my head like some kind of tech-obsessed Atlas. Sweat was dripping onto my glasses, and my ceiling already looked like it had been through a Swiss cheese factory. I had drilled four holes, and yet, the image was still stubbornly three inches to the left of my screen. It’s a visceral kind of frustration that makes you want to pack the whole home theater into a box and go back to a tiny CRT. I made the classic mistake of trusting my eyes and a tape measure that didn’t account for the lens offset, a blunder that many of us face when your mount doesn’t line up with the studs exactly where you need it. Today, I’m going to share the low-tech, high-reward secret I learned the hard way: the cardboard template hack. We are going to stop the guessing game and ensure your lens sits perfectly dead-center without a single unnecessary hole in your drywall.
Stop Fighting Your Projector Lens Offset
I spent years thinking I was just bad at math. Every time I tried to mount a new unit, I’d measure from the center of the chassis, only to realize too late that the lens was actually two inches to the right of the center point. It’s a nightmare. If you don’t get this right, you end up relying on digital keystone correction, which is basically the devil of image quality because it throws away resolution just to square the picture. You might even find that your image stays trapezoid shaped no matter how much you fiddle with the feet. The cardboard hack creates a physical bridge between the mounting holes and the actual glass of the lens, giving you a 1:1 blueprint you can tape to the ceiling. It’s the only way I’ve found to guarantee success on the first try. Have you ever turned your living room ceiling into a disaster zone trying to get that 100-inch image perfectly aligned?
Does This Low-Tech Trick Actually Worth the Effort?
You might be skeptical. Why use a pizza box when you have a laser level? Well, laser levels are great, but they don’t help you mark the exact screw positions while you’re balancing a heavy mount. According to the optical engineers at ProjectorCentral, even a few millimeters of misalignment can lead to noticeable softness at the edges of your screen. A cardboard template allows you to mark the lens center, the mounting bracket holes, and the cable pass-through all at once on the ground, where gravity isn’t your enemy. It’s the difference between a professional-looking setup and one that looks like a DIY project gone wrong. In the next few steps, I’ll walk you through how to create this template so you can finally sit back and enjoy the movie instead of staring at a crooked frame.
Build Your Paper Proxy First

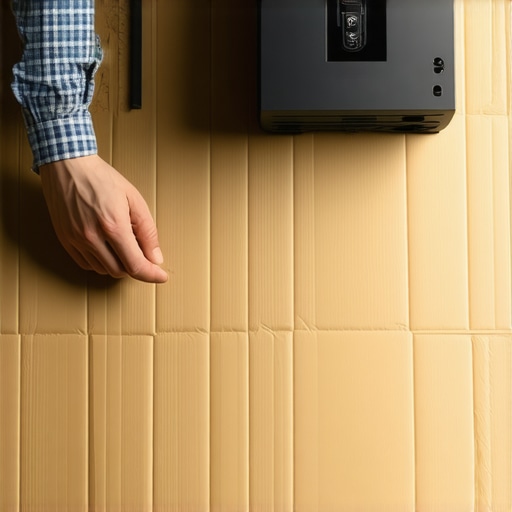

The secret to avoiding a ceiling that looks like a target range is to create a 1:1 replica of your projector’s footprint. Grab a flat piece of cardboard—a shipping box or a pizza lid works wonders—and flip your projector upside down on top of it. Trace the entire perimeter of the chassis with a sharpie. Before you move the unit, look for the mounting threads on the bottom. These are the small screw holes where your ceiling bracket actually attaches. Poke a hole through the cardboard at each of these points. This ensures that when you’re standing on a ladder later, you aren’t guessing where the screws go; you’re just following the map you made on the floor. I remember my first time doing this with an old BenQ; I used an Amazon box and realized that one of my mounting holes was hidden under a removable foot I hadn’t noticed. If I hadn’t made the template, I would have been drilling blind.
Nail the Lens Alignment Every Time
The most frustrating part of a projector is that the lens is rarely centered on the body. It’s like a sniper scope that sits slightly to the side of the barrel. If you mount the bracket to the center of the projector’s body, your image will be off-center from the screen. On your cardboard template, find the exact center of the glass lens and mark it with a big ‘X’. Measure the distance from that ‘X’ to your mounting holes. This ‘X’ is what you will align with the center of your projector screen. This is crucial because if you miss this, you’ll be forced to use digital keystone, and your image stays trapezoid shaped no matter how much you tilt the mount. Just like how your mini LED backlight looks like a checkerboard when the zones aren’t synced, a projector lens that isn’t perfectly perpendicular to the screen will create a blurry, uneven mess.
Manage the Wiring Chaos Early

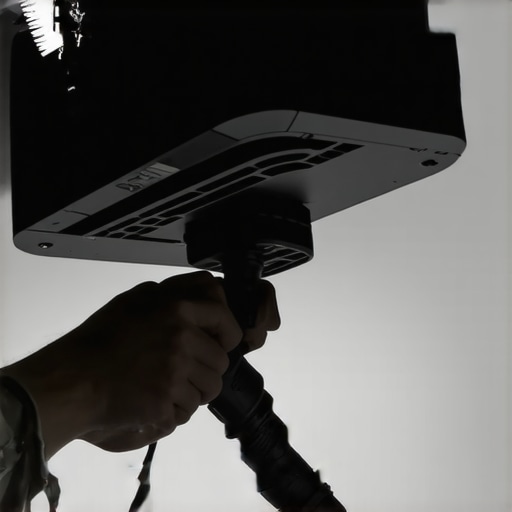

While you have the template on the floor, plan for the cables. Most people forget that HDMI heads and power cables need room to bend. Trace a hole in your cardboard where the ports are located. If your projector has a massive external power supply, you’ll need to figure out a mounting solution for that too, similar to how to hide bulky power bricks behind your slim TV mount. This is also the perfect time to ensure everything is clean before it goes out of reach. You should check if you need to perform the right way to clean dust from inside a projector before sealing it up on a high mount where it will inevitably bake in its own heat.
Transfer Your Marks to the Ceiling
Now take that light piece of cardboard and tape it to the ceiling. Use a plumb line or a long straight edge to align the ‘X’ (your lens center) with the center of your screen. Because the cardboard weighs almost nothing, you can reposition it ten times until it’s perfect. Once it’s aligned, use a drill bit to go straight through the holes you poked earlier in the cardboard and into the ceiling. If you find yourself missing the joists, you’ll need to pivot your strategy, much like when your mount doesn’t line up with the studs on a wall. By the time you pull the cardboard down, you have perfectly placed pilot holes that account for the lens offset, the bracket position, and cable management. It turns a three-hour frustration session into a twenty-minute victory.While the cardboard template gets your physical alignment right, there is a psychological trap most enthusiasts fall into once the unit is actually bolted to the ceiling: the brightness obsession. We’ve been conditioned to think that more lumens always equal a better picture, but in a dedicated dark room, cranking your projector to its maximum output is one of the fastest ways to wash out your black levels. It’s a similar phenomenon to why your mini LED looks better with local dimming turned off in certain high-contrast scenes; sometimes, less is more when it comes to preserving shadow detail. I see so many enthusiasts buy a high-end 4K unit and then kill the depth of the image by running the lamp on high when the eco mode would actually provide a more cinematic experience and far better black levels.
Why Is My Screen Edge Blurry When the Center Is Sharp?

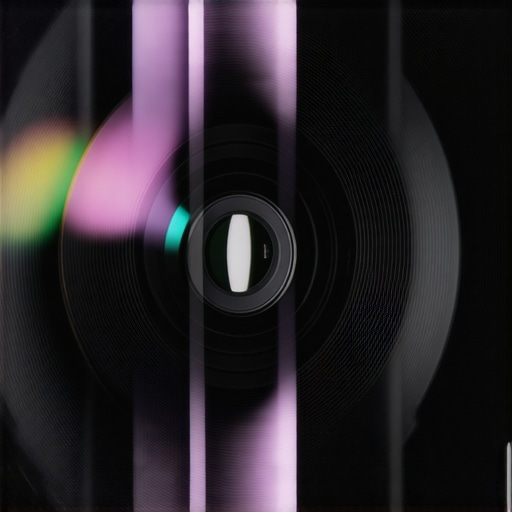

This is the oops factor that catches even seasoned pros. If you have used the lens shift to its absolute physical limit—cranking that dial until it won’t move anymore—you are likely pushing the light through the very edge of the internal glass elements. According to the optics experts at the Imaging Science Foundation (ISF), the sharpest part of any lens is the center. When you use extreme lens shift, you introduce chromatic aberration and soft corners. This is why your projector image looks blurry in the corners despite focus. The goal should be to get the projector as physically centered as possible using our template trick, using only the smallest amount of optical shift to fine-tune the result rather than relying on it to fix a bad mounting job.
Another trap is the set it and forget it mentality regarding heat. If you’ve tucked your projector into a tight custom soffit or a decorative box to hide it, you are likely shortening the lifespan of both the lamp and the sensitive internal polarizers. I’ve seen high-end projectors develop permanent yellow spotting because they couldn’t breathe. You must learn how to stop your projector from overheating in a cabinet by ensuring active airflow or using quiet intake fans. Also, don’t fall for the salesperson’s pitch on premium cables; the truth about expensive HDMI cables and your picture quality is that as long as they meet the rated bandwidth, a digital signal doesn’t get sharper just because the connector is expensive. Lastly, stop treating digital keystone like a harmless adjustment tool. It is a digital crop and stretch that throws away actual pixels. If you use it, you are no longer watching a true 4K image. Have you ever fallen into this trap where you prioritized convenience over pixel-perfect accuracy? Let me know in the comments below.Once that mounting bracket is solid and the image is square, your job actually shifts from architect to mechanic. I’ve seen too many $3,000 setups look like $300 Craigslist specials within a year because the owner didn’t understand that home theater gear is a living, breathing ecosystem. Dust is the primary antagonist here. It doesn’t just sit on the lens; it gets sucked into the intake and bakes onto the internal polarizers. If you start noticing that your projector fan is getting louder every week, it’s not just a nuisance—it’s a cry for help. The cooling system is working overtime to push air through a clogged filter. I make it a habit to use a small, handheld vacuum (never compressed air, which just pushes dust deeper) on the vents every month. If you’re feeling brave, you can even learn how to clean dust from inside your projector lens safely, but proceed with extreme caution to avoid scratching the coatings.
How do I maintain my display’s peak performance over time?
Consistency is the secret sauce. For OLED owners, this means letting the TV run its internal ‘pixel refresher’ cycles undisturbed; never pull the power plug right after turning it off. For projector enthusiasts, it’s about monitoring lamp hours and environmental heat. According to the technical guidelines from the Society of Motion Picture and Television Engineers (SMPTE), maintaining a consistent ambient temperature is vital for color stability. If your room fluctuates by ten degrees, your calibration will drift. I use a cheap Govee thermometer hidden behind my screen to track this. If the heat rises too much, I know it’s time to check if I need to learn how to stop your projector from overheating in a cabinet by adding active exhaust fans.
The Hardware Every Enthusiast Needs in Their Toolkit
You don’t need a professional degree to keep things running, but you do need better tools than a standard screwdriver. I personally swear by a basic Lux Meter. You can find them for under fifty dollars, and they allow you to measure exactly how much brightness you are losing as your lamp ages. When your ‘white’ scenes start looking muddy, check the meter; if you’ve lost 30% of your initial brightness, it’s time for a new bulb, regardless of what the hour-counter says. Also, keep a spare ‘certified’ cable on hand. Digital signals are fickle, and knowing how to tell if your hdmi 2.1 cable is actually a fake can save you hours of troubleshooting when your 4K signal suddenly starts flickering. We are moving toward a future where laser-phosphor engines and Micro-LED panels will eliminate the ‘lamp’ entirely, making these devices virtually maintenance-free for 20,000 hours. Until that tech becomes affordable for everyone, your best tool is your own vigilance. My advanced tip for today? Buy a dedicated power conditioner. Not a cheap power strip, but a unit that levels out voltage sags. It will extend the life of your power supply and prevent those mysterious ‘handshake’ issues that plague high-end OLED and projector setups. Go check your fan vents right now—you’ll be surprised at what’s hiding there.
Lessons I Learned While Staring at a Crooked Screen
After a decade of tinkering, I realized that the biggest mistake is over-relying on the theory of the manual. Every room has its quirks—slanted floors, slightly bowed joists, or unexpected wall studs. The hardest lesson? Never trust a mounting bracket to be perfectly level out of the box. I always check the bracket itself with a spirit level before I even think about lifting the projector. Also, I’ve learned that lens shift isn’t a ‘get out of jail free’ card; it’s for final 1% adjustments. If you rely on it too much, you’ll find that your projector image is blurry in the corners but sharp in the middle. Finally, always account for ‘cable tug.’ A heavy HDMI cable can actually pull a lightweight projector slightly out of alignment over time if it isn’t properly secured.
The Gear That Saved My Living Room Ceiling
You don’t need a professional installer’s van, but a few specific items will change your life. I never start a project without a Lux Meter; it’s the only way to objectively know if your lamp is dying or if your eyes are just tired. I also keep a roll of blue painter’s tape handy for marking out the screen corners on the wall before the screen even arrives. For those dealing with difficult surfaces, knowing the secret to mounting a tv on a solid concrete wall applies equally well to heavy projector mounts. If you’re seeing odd reflections or a grainy texture, you might need to look into how to fix the shimmering effect on alr projector screens, especially if you’ve paired a high-gain screen with a powerful laser unit. And of course, keep a ‘known good’ HDMI cable aside to test against potential duds—check how to tell if your hdmi 2.1 cable is actually a fake before you bury a bad wire inside your ceiling.
#IMAGE_PLACE_HOLDER_D#
Stop Planning and Start Mounting
The transition from a ‘cool idea’ to a functional home theater is often blocked by the fear of making a mistake. But with the cardboard template in your hand, that fear evaporates. You aren’t guessing anymore; you’re executing a plan. Your projector is the heart of your entertainment world, and giving it a stable, perfectly aligned home is the best gift you can give your cinematic experience. Don’t let the fear of a vibrating mount stop you; learn how to stop your projector from vibrating when the bass hits and enjoy the rock-solid stability of a job well done. It’s time to dim the lights and let the opening credits roll.
Have you ever turned your ceiling into a disaster zone by missing the center mark? Let me know your mounting success stories (or horror stories) in the comments below!
